Cisco 9124AXE Power Injector

In this short blog, we’ll take a look at the requirements for using a power injector with the Cisco 9124AXE AP.

ASSOCIATED BLOGS:

• Cisco 9124
• Wi-Fi Grades
• Wi-Fi Surveys
• Wi-Fi and the Cinema Story

Cisco 9124AXE Power Requirements

Depending on the configuration you intend to run the Cisco 9124AXE in, you’ll likely need a switch which supports UPOE (60w).

Many switches are not capable of this POE requirement, so you are left with a choice: an expensive switch replacement, or the use of a power injector.

ASSOCIATED BLOGS:

• Increasing AP Density
• Wi-Fi Phone Dropouts

Cisco 9124AXE Power Injector

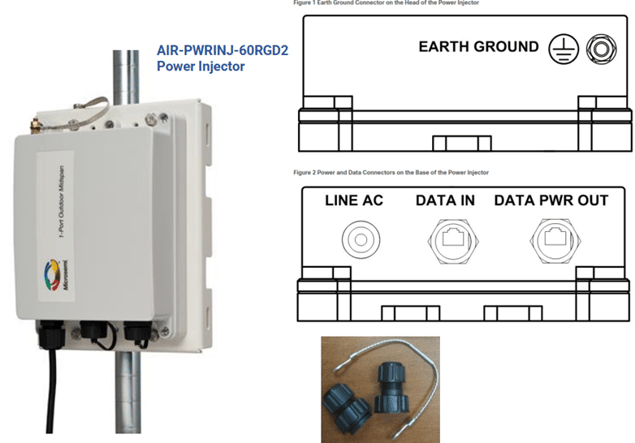

The image below details the official Cisco power injector for the 9124AXE, noting there are additional third-party manufacturer options:

There are some important notes for powering the 9124AXE AP:

• To enable both 2.4GHz and 5GHz (Dual Band) on all 4 ports the Access Point must be powered by UPoE (60W / 802.3bt)
• When ports 5 and 6 are also connected to an antenna, the Access Point must be powered by UPoE (60W / 802.3bt)
• If UPoE (60W / 802.3bt) is not available on the switch port connecting the Access Point, we can use a “Power Injector”
• The AIR-PWRINJ-60RGD2 Power Injector is shown here, and can be wall mounted, or pole mounted
